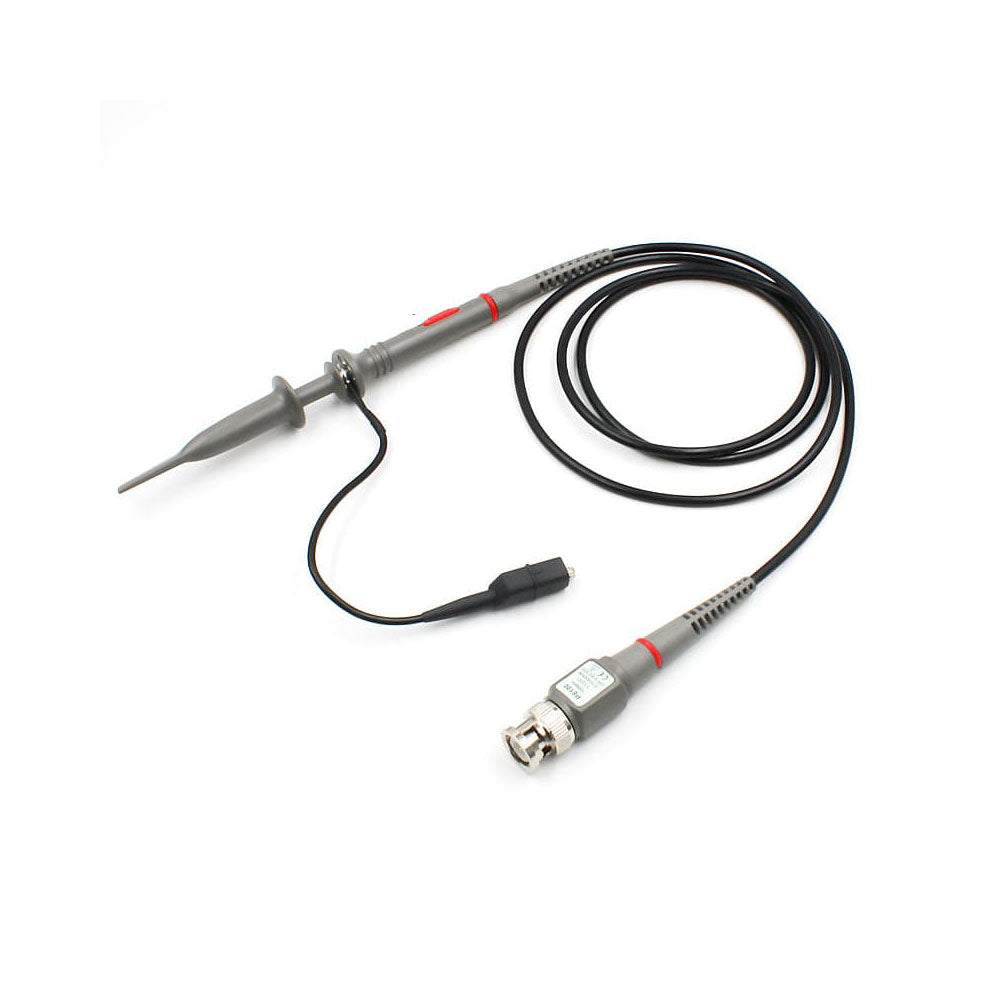

Fnirsi P6100 Oscilloscope Probe

Description

The FNIRSI P6100 is a universal passive oscilloscope probe (1x/10x) with up to 100 MHz bandwidth for accurate signal measurement in electronic circuits.

Specifications

Bandwidth DC-6 MHz
DC-100 MHz
Attenuation Ration 1 : 10
Input Resistance 1M : 10
Input Capacitance 1X: 85pF-120pF
10X: 18.5pF-22.5pF
Compensation Range 10pF-30pF
Rise Time <3.5ns
Working Voltage 1X: <200V DC+AC Peak
10X: <600V DC+AC

Included

  • 1x P6100 Oscilloscope Probe
  • 1x Adapter
Fiche produit

The FNIRSI P6100 is a universal passive oscilloscope probe (1x/10x) with up to 100 MHz bandwidth for accurate signal measurement in... Lire la suite

€ 9,95 € 4,95 (TVA incluse)
Membres identique

    Détails

    SKU : 20525
    EAN : 020525

    Description

    The FNIRSI P6100 is a universal passive oscilloscope probe (1x/10x) with up to 100 MHz bandwidth for accurate signal measurement in electronic circuits.

    Specifications

    Bandwidth DC-6 MHz
    DC-100 MHz
    Attenuation Ration 1 : 10
    Input Resistance 1M : 10
    Input Capacitance 1X: 85pF-120pF
    10X: 18.5pF-22.5pF
    Compensation Range 10pF-30pF
    Rise Time <3.5ns
    Working Voltage 1X: <200V DC+AC Peak
    10X: <600V DC+AC

    Included

    • 1x P6100 Oscilloscope Probe
    • 1x Adapter
