BreadBoard BB830T (830 Tie Points) Transparent

  • MarqueBusBoard

Description

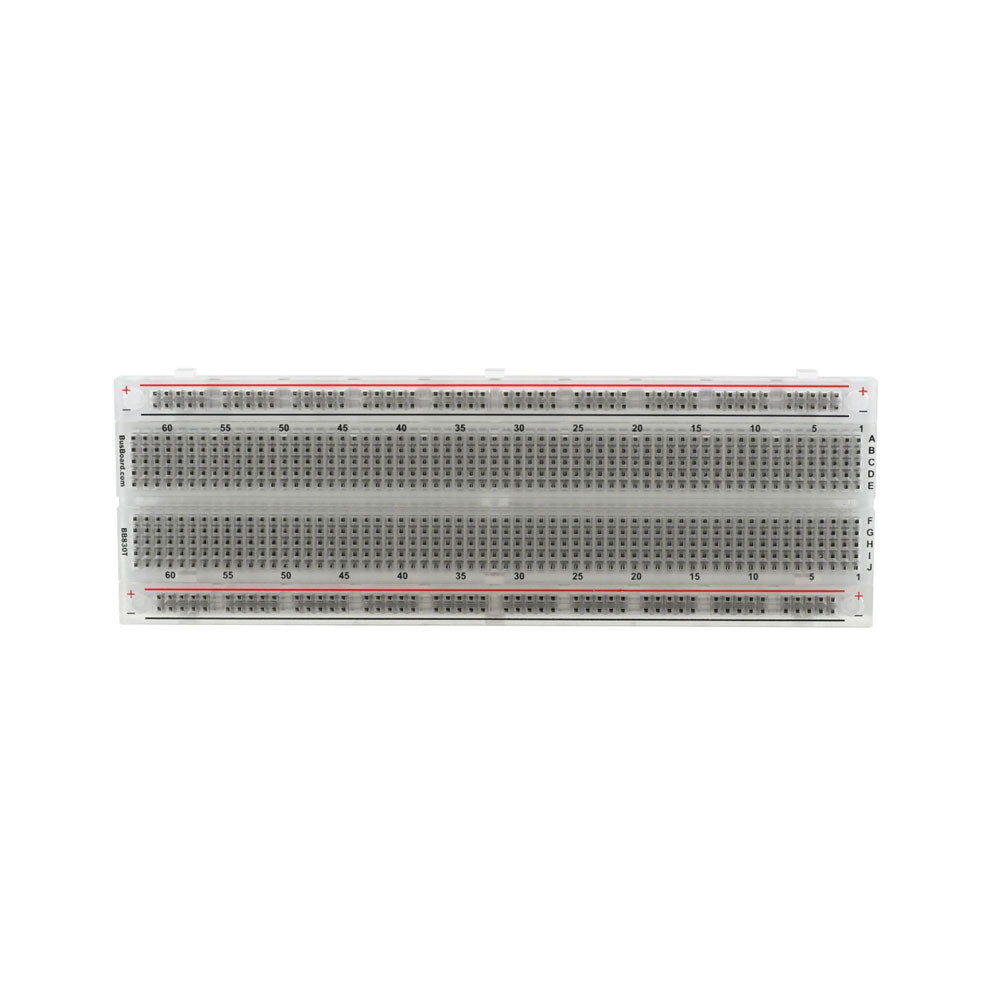

The BB830T is a solderless (plug-in) transparent breadboard with 830 connection tie-points (i.e. 830 wire insertion holes). It has 4 power rails. Solderless breadboards are great for building and testing new circuits because parts can be easily inserted and removed. They are completely re-usable. The BB830T has a 630 tie-point IC-circuit area plus four 50 tie-point power rails.

Specifications

  • 830 tie points total: 630 tie-point IC-circuit area plus two 100 tie-point distribution strips providing 4 power rails.
  • ABS plastic/transparent body with black printed legend. Color legend on distribution strips.
  • Contacts are Phosphor Bronze with Plated Nickel Finish, rated for 50,000 insertions.
  • Rated at 36 Volts, 2 Amps.
  • Insertion Wire Size is 21 to 26 AWG, 0.016 to 0.028 inches diameter (0.4 to 0.7mm diameter).
  • Peelable adhesive tape backing provided for attaching to a surface. Metal back plate provided.
Fiche produit

The BB830T is a solderless (plug-in) transparent breadboard with 830 connection tie-points (i.e. 830 wire insertion holes). It has 4... Lire la suite

€ 10,20 (TVA incluse)
Acheter (chez Eleshop)
En cliquant sur « Acheter », vous serez redirigé vers notre boutique partenaire Eleshop. Elektor reçoit une petite commission pour chaque achat effectué via ce lien. Cela ne vous entraîne aucun coût supplémentaire. Les conditions générales de vente d'Eleshop s'appliquent.

    Détails

    SKU : 17092
    EAN : 017092

    Description

    The BB830T is a solderless (plug-in) transparent breadboard with 830 connection tie-points (i.e. 830 wire insertion holes). It has 4 power rails. Solderless breadboards are great for building and testing new circuits because parts can be easily inserted and removed. They are completely re-usable. The BB830T has a 630 tie-point IC-circuit area plus four 50 tie-point power rails.

    Specifications

    • 830 tie points total: 630 tie-point IC-circuit area plus two 100 tie-point distribution strips providing 4 power rails.
    • ABS plastic/transparent body with black printed legend. Color legend on distribution strips.
    • Contacts are Phosphor Bronze with Plated Nickel Finish, rated for 50,000 insertions.
    • Rated at 36 Volts, 2 Amps.
    • Insertion Wire Size is 21 to 26 AWG, 0.016 to 0.028 inches diameter (0.4 to 0.7mm diameter).
    • Peelable adhesive tape backing provided for attaching to a surface. Metal back plate provided.
