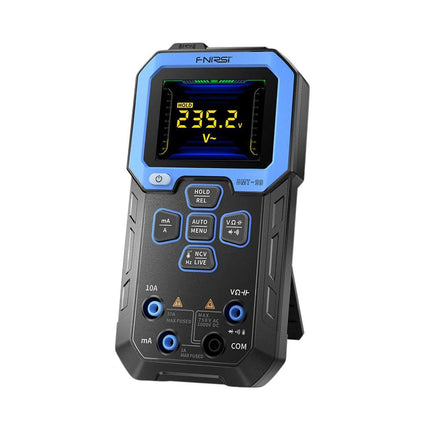

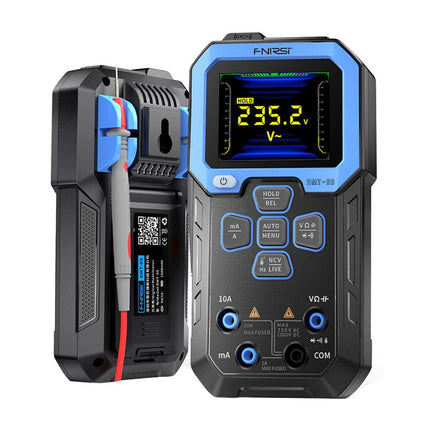

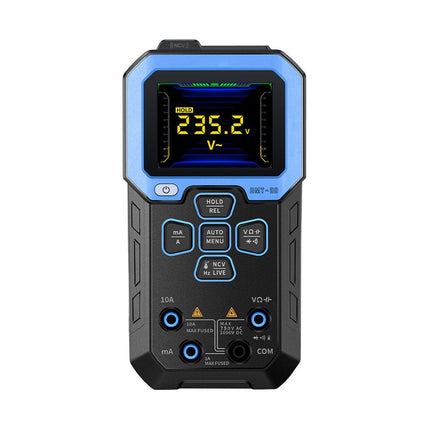

Multimètre intelligent FNIRSI DMT-99

The FNIRSI DMT-99 is an intelligent digital multimeter with 10000 counts, which offers a high measuring range and high resolution. It can accurately measure AC/DC voltage, AC/DC current, 10 A current and can also be used to test conductivity, capacitance, frequency, duty cycle, resistance, diode, temperature, NCV, live wire detection, etc.

It is suitable for various electronic maintenance fields such as mechanical engineering, laboratories, automobiles and home appliances. It is equipped with a 1500 mAh lithium battery and a 2.4" TFT full-color display with a resolution of 240 x 320 pixels.

Specifications

Function Range Accuracy
DC voltage 9.999 V/99.99 V/999.9 V ±(0.5%+3)
AC voltage 9.999 V/99.99 V/750.0 V ±(1%+3)
DC current 9999 uA/99.99 mA/999.9 mA/9.999 A ±(1.2%+3)
AC current 9999 uA/99.99 mA/999.9 mA/9.999 A ±(1.5%+3)
Resistance 9.999 MΩ/999.9 KΩ/99.99 KΩ/9.999 KΩ/999.9 Ω ±(1.5%+3)
99.99 MΩ ±(1.5%+3)
Capacitance 999.9 µF/99.99 µF/9.999 µF/999.9 nF/99.99 nF/9.999 nF ±(2.0%+3)
9.999 mF/99.99 mF ±(5.0%+3)
Frequency 9.999 MHz/999.9 KHz/9999 KHz/9.999 KHz/999.99 Hz/99.99 Hz/9.999 Hz ±(0.1%+3)
Temperature -55~1300°C (-64~2372°F) ±(2.5%+3)
Diode Yes
Continuity test Yes
NVC Yes
Live wire detection Yes
Max counts 10000 counts
Battery capacity 1500 mAh
Dimensions 155 x 80 x 36 mm
Weight 191 g

Included

  • 1x FNIRSI DMT-99 multimeter
  • 2x Test pens
  • 1x USB-C charging cable
  • 1x Manual
Fiche produit

The FNIRSI DMT-99 is an intelligent digital multimeter with 10000 counts, which offers a high measuring range and high resolution. It... Lire la suite

Pas d'évaluation

SKU : 20765
EAN : 020765

€ 44,95 TVA incluse
Membres € 40,46

    • Expédier aujourd'hui ? Commandez dans Mar 01, 2024 17:00:00 +0100

    The FNIRSI DMT-99 is an intelligent digital multimeter with 10000 counts, which offers a high measuring range and high resolution. It can accurately measure AC/DC voltage, AC/DC current, 10 A current and can also be used to test conductivity, capacitance, frequency, duty cycle, resistance, diode, temperature, NCV, live wire detection, etc.

    It is suitable for various electronic maintenance fields such as mechanical engineering, laboratories, automobiles and home appliances. It is equipped with a 1500 mAh lithium battery and a 2.4" TFT full-color display with a resolution of 240 x 320 pixels.

    Specifications

    Function Range Accuracy
    DC voltage 9.999 V/99.99 V/999.9 V ±(0.5%+3)
    AC voltage 9.999 V/99.99 V/750.0 V ±(1%+3)
    DC current 9999 uA/99.99 mA/999.9 mA/9.999 A ±(1.2%+3)
    AC current 9999 uA/99.99 mA/999.9 mA/9.999 A ±(1.5%+3)
    Resistance 9.999 MΩ/999.9 KΩ/99.99 KΩ/9.999 KΩ/999.9 Ω ±(1.5%+3)
    99.99 MΩ ±(1.5%+3)
    Capacitance 999.9 µF/99.99 µF/9.999 µF/999.9 nF/99.99 nF/9.999 nF ±(2.0%+3)
    9.999 mF/99.99 mF ±(5.0%+3)
    Frequency 9.999 MHz/999.9 KHz/9999 KHz/9.999 KHz/999.99 Hz/99.99 Hz/9.999 Hz ±(0.1%+3)
    Temperature -55~1300°C (-64~2372°F) ±(2.5%+3)
    Diode Yes
    Continuity test Yes
    NVC Yes
    Live wire detection Yes
    Max counts 10000 counts
    Battery capacity 1500 mAh
    Dimensions 155 x 80 x 36 mm
    Weight 191 g

    Included

    • 1x FNIRSI DMT-99 multimeter
    • 2x Test pens
    • 1x USB-C charging cable
    • 1x Manual
