Description

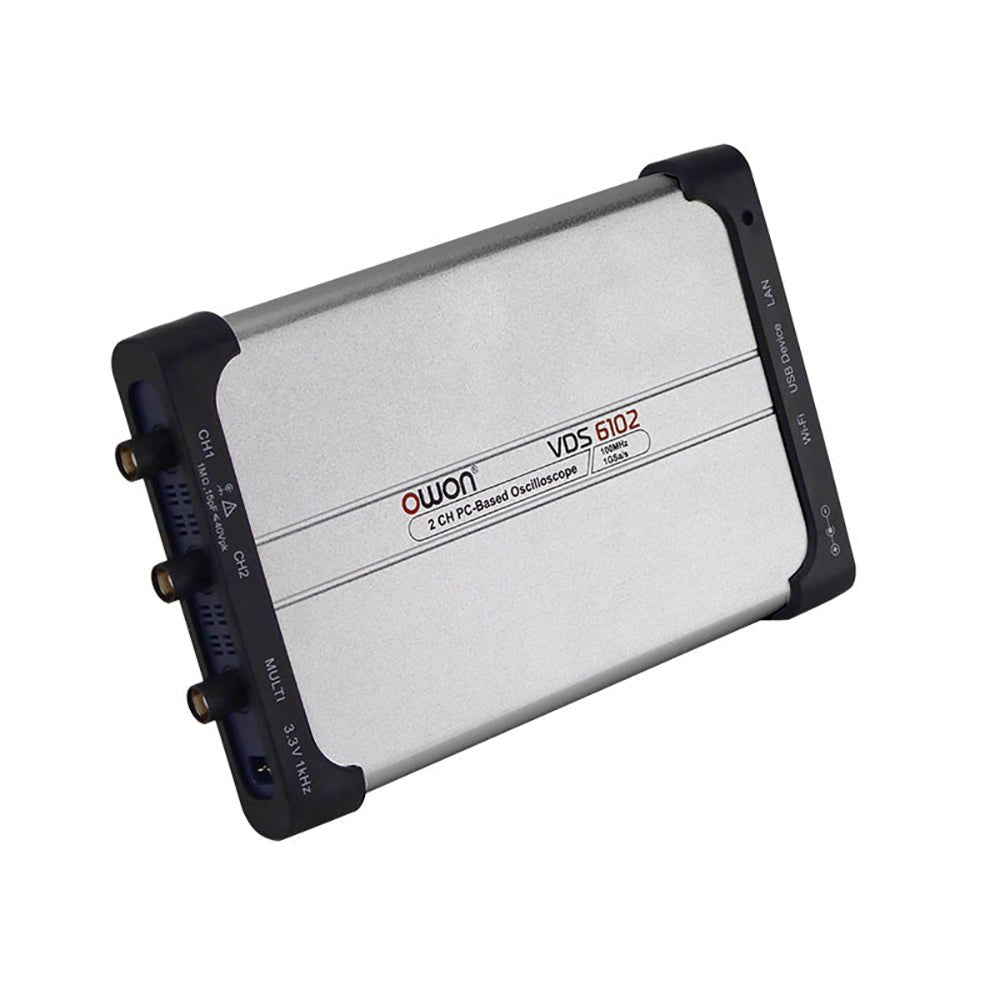

The OWON VDS6000 Series PC Oscilloscope combines powerful performance with a sleek, ultra-thin design. With 100 MHz bandwidth, 1 GSa/s real-time sampling, and up to 14-bit resolution, it delivers highly accurate measurements. The built-in 5 MHz function generator, USB-C power supply, and optional WiFi connectivity make it incredibly versatile.
Compatible with Windows, Linux, Android, and iOS, the VDS6000 is perfect for labs, fieldwork, and remote diagnostics – compact, flexible, and ready for any challenge.
Features
- Bandwidth: 100 MHz
- Vertical resolution: 14 bits
- Rise time: ≤3.5 ns
- Memory: 10 Mpts
- Number of channels: 2 channels + 1 channel function generator
- Horizontal scale: 5ns - 100s/div
- Sample rate: Max. 1 GSa/s
- Maximum voltage: 40 V (peak - peak)
- Automatic measurements: Vpp, Vavg, Vamp, Vrms, Freq, Period, Vmax, Vmin, Vtop, Vbase, Overshoot, Preshoot, Rise Time,
- Connectivity: USB-C, LAN, Wifi (optional)
- Fall Time, Delay A→B↑, Delay A→B↓, +Width, -Width, +Duty, -Duty
- Bandwidth: 5 MHz
- Sample rate: 25 MSa/s
- Standard waveforms: Sine (0.1 Hz - 5 MHz), Square (0.1 Hz - 200 kHz), Ramp (1 Hz - 10 kHz), Pulse (1 Hz - 10 kHz)
- Resolution: 10 bits
- DC offset range (AC + DC): ±2.5 V
- Amplitude range: 10 mVpp - 5 Vpp
- Dimensions: 190 x 120 x 18 mm
- Weight: 380 g
