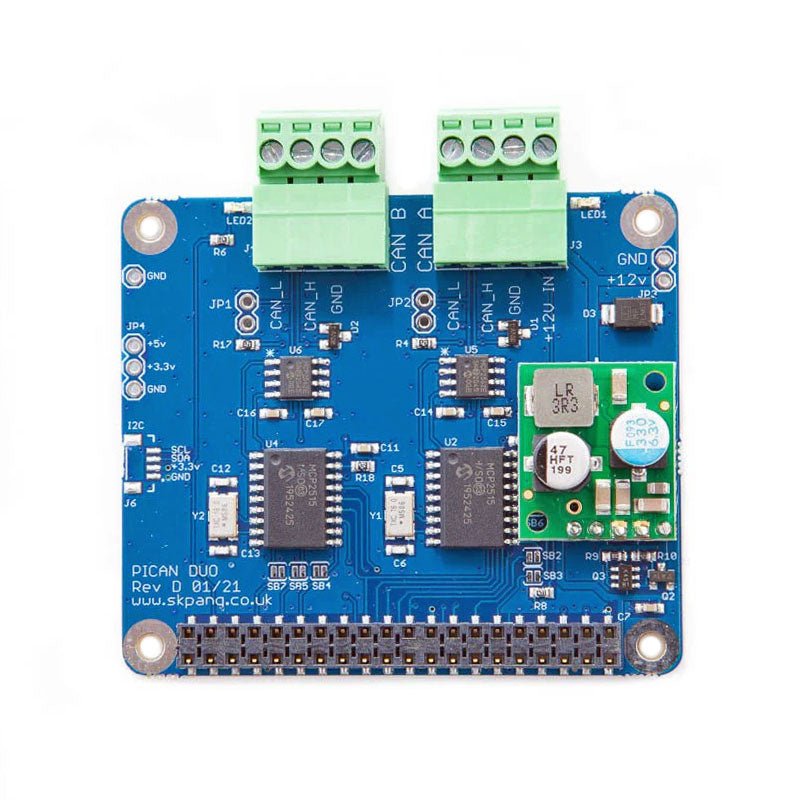

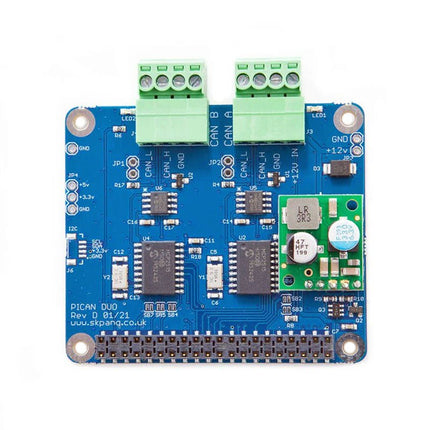

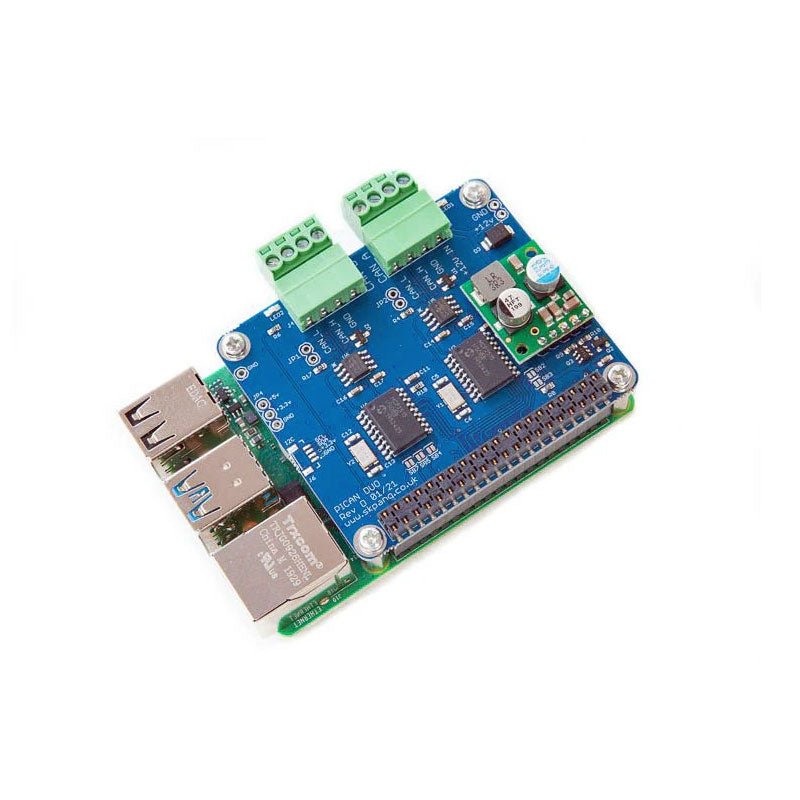

PiCAN 2 Duo (Carte CAN-Bus pour Raspberry Pi 4 avec 3 A SMPS)

  • MarqueSK Pang Electronics

Description

This PiCAN2 Duo board provides two independent CAN-Bus channels for the Raspberry Pi 4. It uses the Microchip MCP2515 CAN controller with MCP2551 CAN transceiver. Connections are made via 4-way screw terminal. This board has a 5 V/3 A SMPS that can power the Raspberry Pi is well via the screw terminal.p

Easy to install SocketCAN driver. Programming can be done in C or Python.

Caractéristiques

  • CAN v2.0B at 1 Mb/s
  • High speed SPI Interface (10 MHz)
  • Standard and extended data and remote frames
  • CAN connection screw terminal
  • 120 Ω terminator ready
  • Serial LCD ready
  • LED indicator
  • Four fixing holes, comply with Pi Hat standard
  • SocketCAN driver, appears as can0 and can1 to application
  • Interrupt RX on GPIO25 and GPIO24
  • 5 V/3 A SMPS to power Raspberry Pi and accessories from screw terminal
    • Reverse polarity protection
    • High efficiency switch mode design
    • 7-24 V input range

Téléchargements

Fiche produit

This PiCAN2 Duo board provides two independent CAN-Bus channels for the Raspberry Pi 4. It uses the Microchip MCP2515 CAN controller with... Lire la suite

€ 99,95 TVA incluse
Membres € 89,96

    • Expédier aujourd'hui ? Commandez dans May 07, 2025 16:00:00 +0200

    Détails

    SKU : 19684
    EAN : 019684

    Description

    This PiCAN2 Duo board provides two independent CAN-Bus channels for the Raspberry Pi 4. It uses the Microchip MCP2515 CAN controller with MCP2551 CAN transceiver. Connections are made via 4-way screw terminal. This board has a 5 V/3 A SMPS that can power the Raspberry Pi is well via the screw terminal.p

    Easy to install SocketCAN driver. Programming can be done in C or Python.

    Caractéristiques

    • CAN v2.0B at 1 Mb/s
    • High speed SPI Interface (10 MHz)
    • Standard and extended data and remote frames
    • CAN connection screw terminal
    • 120 Ω terminator ready
    • Serial LCD ready
    • LED indicator
    • Four fixing holes, comply with Pi Hat standard
    • SocketCAN driver, appears as can0 and can1 to application
    • Interrupt RX on GPIO25 and GPIO24
    • 5 V/3 A SMPS to power Raspberry Pi and accessories from screw terminal
      • Reverse polarity protection
      • High efficiency switch mode design
      • 7-24 V input range
