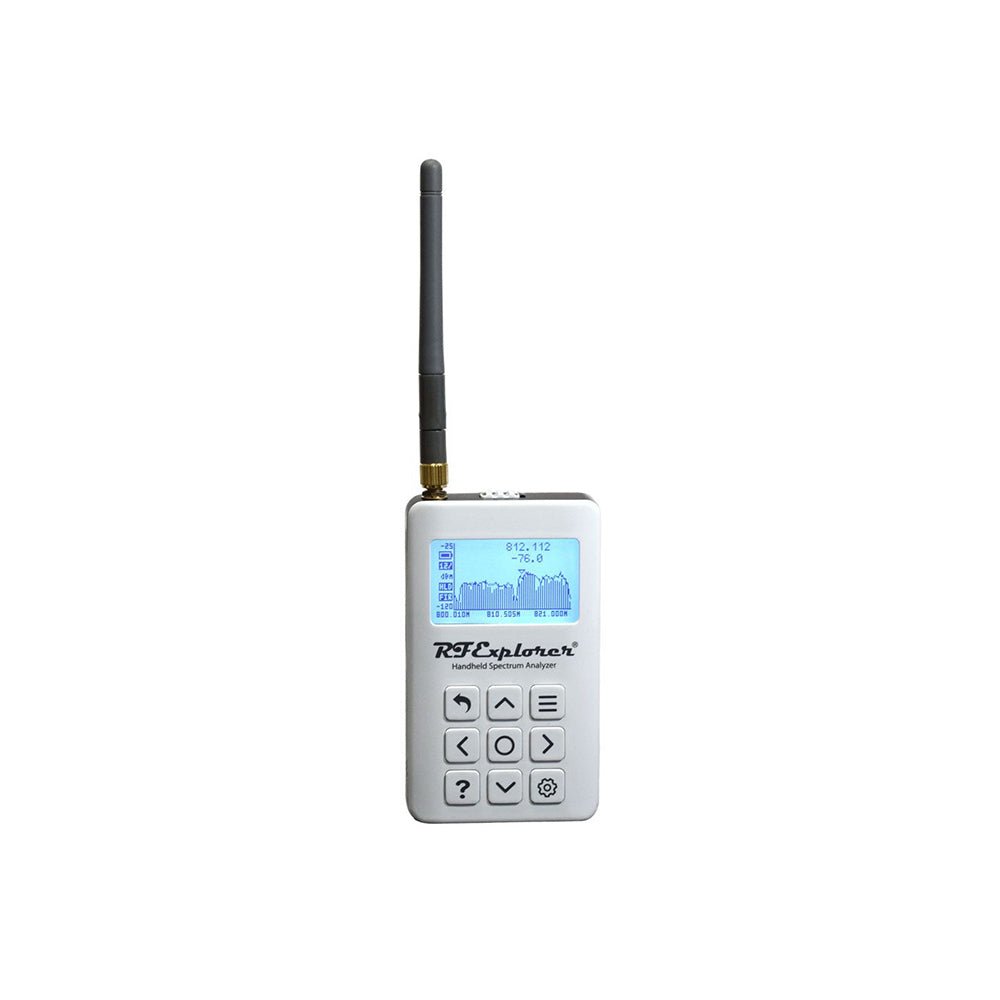

Seeed Studio RF Explorer WSUB1G+ Slim Spectrum Analyzer

  • MarqueSeeed Studio

Description

Features

  • Internal LNA amplifier and selectable attenuator
  • Low frequency support from 50KHz covering LF, MF, HF, VHF and UHF up to 960Mhz
  • New HELP and SET buttons to improve user interface and configuration selection with 2-clicks
  • Wide band coverage to all popular sub-1Ghz bands, including FM, TV and DTV, ISM, RFID, GSM, etc.
  • Ideal choice for HAM bands from 160meters to 33cm
  • Pocket size and light weight
  • Solid metal case
  • Spectrum Analyzer mode with Peak Max and Hold, Normal, Overwrite and Averaging modes
  • High capacity internal Lithium battery for 20hs+ of continuous run, rechargeable by USB
  • Multi-platform Windows/Linux/MacOS Open Source software and API libraries
  • Can be extended with internal Expansion Modules for additional band and functionality

Specifications

  • Frequency band: 0.05 MHz - 960 MHz
  • Frequency span: 0.1 MHz - 960 MHz
  • Internal selectable LNA 25 dB gain
  • Internal selectable Attenuator 30 dB
  • Graphics LCD 128 x 64 pixels, great visibility outdoors
  • Support included for Windows, Linux and MacOS X
  • Backlight for great visibility indoor
  • Internal Lithium Ion 1800mA/h rechargeable battery
  • Standard SMA 50 Ω connector
  • Wideband 144/433MHz dual band telescopic antenna included
  • UHF 400-900 MHz rubber duck articulated antenna included
  • Amplitude resolution: 0.5dBm
  • Dynamic range: -125 dBm to 10 dBm
  • Absolute Max input power: +30dBm
  • Average noise level (typical LNA): -125 dBm
  • Frequency stability and accuracy (typical): +-10 ppm
  • Amplitude stability and accuracy (typical): +-2d Bm
  • Frequency resolution: 1kHz
  • Resolution bandwidth (RBW): automatic 2.6 kHz to 600 kHz

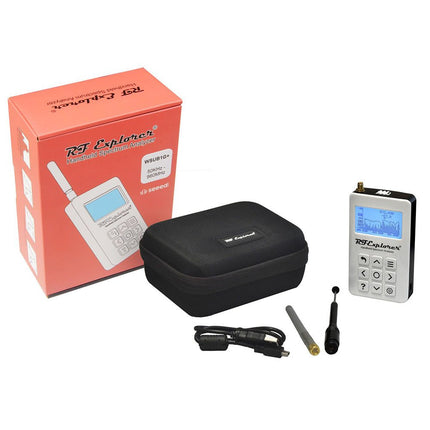

Included

  • 1x RF Explorer WSUB1G+ Spectrum Analyzer
  • 1x Mini USB cable
  • 1x Dual band 144/430MHz Telescopic antenna
  • 1x UHF 400-900Mhz antenna
  • 1x EVA case
Fiche produit

Features Internal LNA amplifier and selectable attenuator Low frequency support from 50KHz covering LF, MF, HF, VHF and UHF up... Lire la suite

€ 202,80 (TVA incluse)
Acheter (chez Eleshop)
En cliquant sur « Acheter », vous serez redirigé vers notre boutique partenaire Eleshop. Elektor reçoit une petite commission pour chaque achat effectué via ce lien. Cela ne vous entraîne aucun coût supplémentaire. Les conditions générales de vente d'Eleshop s'appliquent.

    Détails

    SKU : 19132
    EAN : 114991830

    Description

    Features

    • Internal LNA amplifier and selectable attenuator
    • Low frequency support from 50KHz covering LF, MF, HF, VHF and UHF up to 960Mhz
    • New HELP and SET buttons to improve user interface and configuration selection with 2-clicks
    • Wide band coverage to all popular sub-1Ghz bands, including FM, TV and DTV, ISM, RFID, GSM, etc.
    • Ideal choice for HAM bands from 160meters to 33cm
    • Pocket size and light weight
    • Solid metal case
    • Spectrum Analyzer mode with Peak Max and Hold, Normal, Overwrite and Averaging modes
    • High capacity internal Lithium battery for 20hs+ of continuous run, rechargeable by USB
    • Multi-platform Windows/Linux/MacOS Open Source software and API libraries
    • Can be extended with internal Expansion Modules for additional band and functionality

    Specifications

    • Frequency band: 0.05 MHz - 960 MHz
    • Frequency span: 0.1 MHz - 960 MHz
    • Internal selectable LNA 25 dB gain
    • Internal selectable Attenuator 30 dB
    • Graphics LCD 128 x 64 pixels, great visibility outdoors
    • Support included for Windows, Linux and MacOS X
    • Backlight for great visibility indoor
    • Internal Lithium Ion 1800mA/h rechargeable battery
    • Standard SMA 50 Ω connector
    • Wideband 144/433MHz dual band telescopic antenna included
    • UHF 400-900 MHz rubber duck articulated antenna included
    • Amplitude resolution: 0.5dBm
    • Dynamic range: -125 dBm to 10 dBm
    • Absolute Max input power: +30dBm
    • Average noise level (typical LNA): -125 dBm
    • Frequency stability and accuracy (typical): +-10 ppm
    • Amplitude stability and accuracy (typical): +-2d Bm
    • Frequency resolution: 1kHz
    • Resolution bandwidth (RBW): automatic 2.6 kHz to 600 kHz

    Included

    • 1x RF Explorer WSUB1G+ Spectrum Analyzer
    • 1x Mini USB cable
    • 1x Dual band 144/430MHz Telescopic antenna
    • 1x UHF 400-900Mhz antenna
    • 1x EVA case
