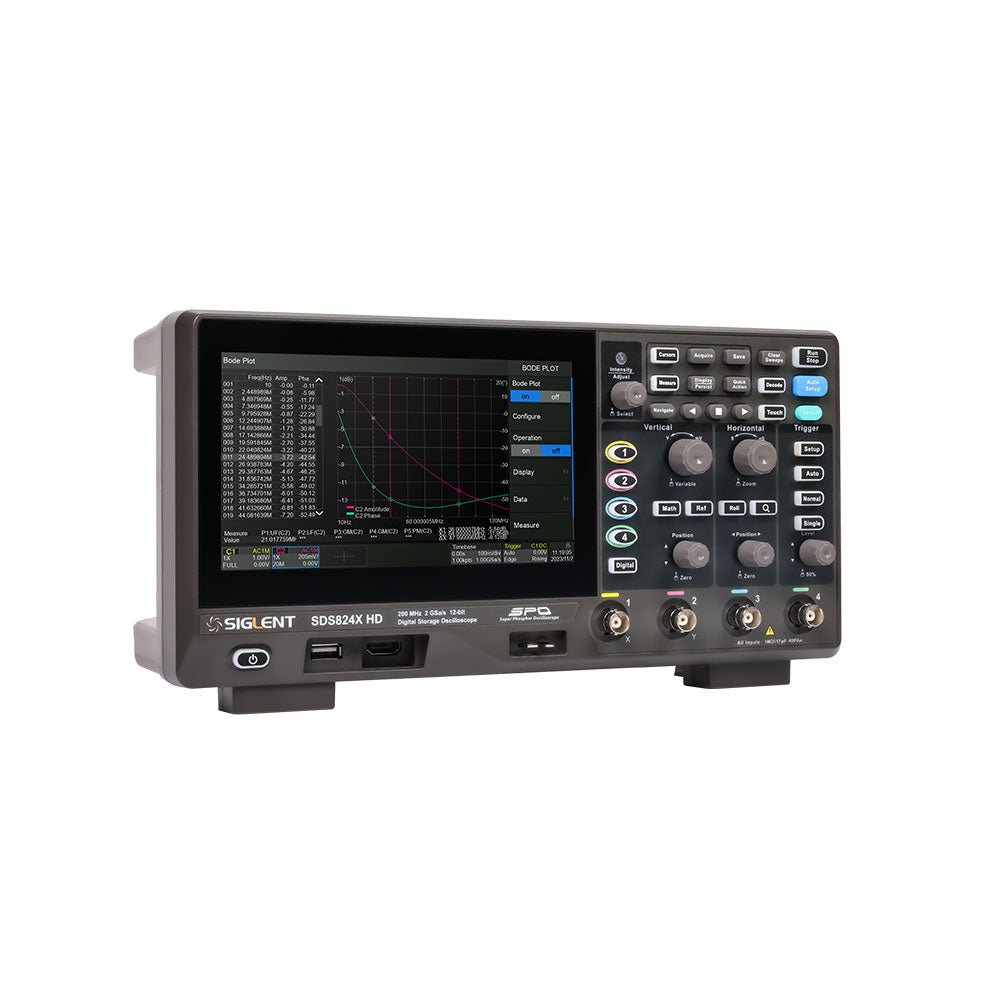

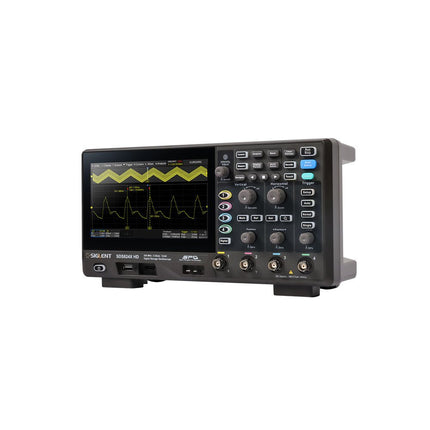

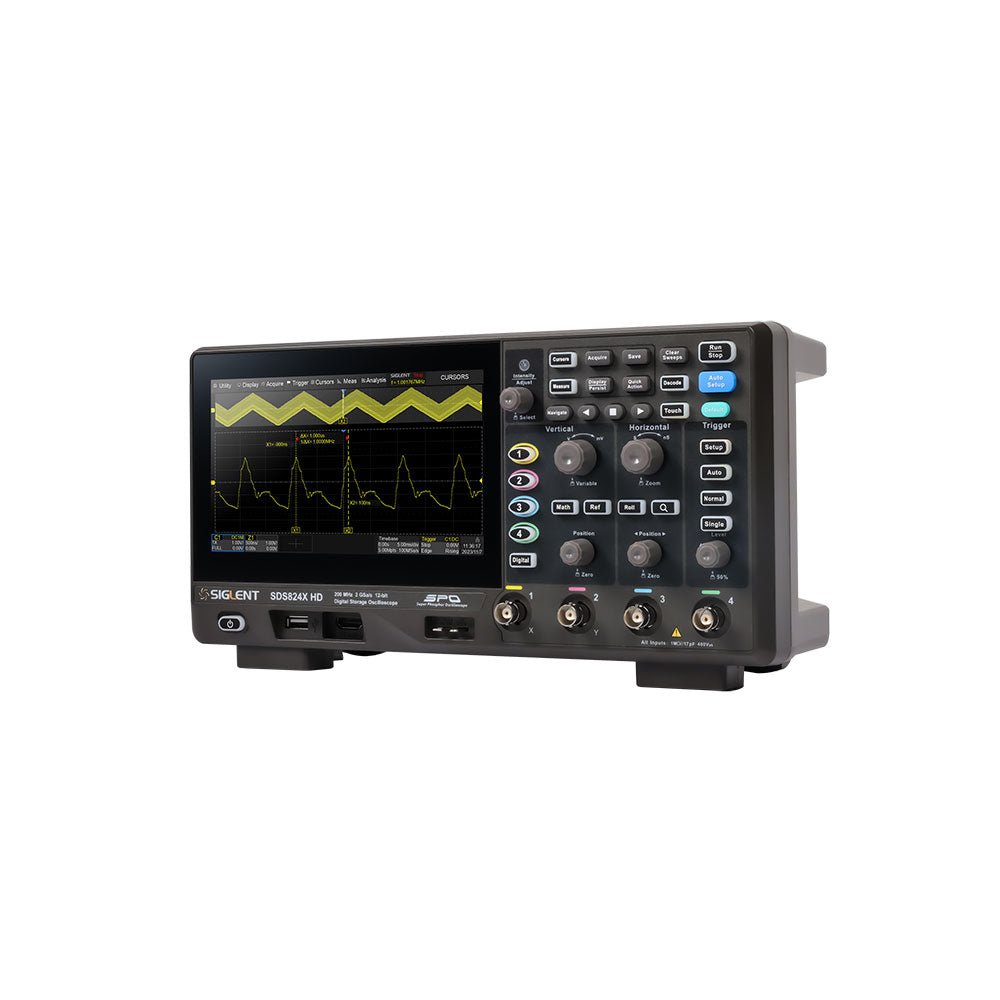

Siglent SDS814X HD Oscilloscope à 4 canaux (100 MHz)

  • MarqueSiglent

Description

The Siglent SDS814X HD digital storage oscilloscope is based on 2 GSa/s, 12-bit Analog-Digital Converters and front ends with excellent noise floor performance. With a 100 MHz bandwidth, and a maximum record length of 50 Mpts, and the capability to analyze 4 analog channels alongside 16 digital channels, the SDS814X HD is perfectly suited for mixed signal analysis.

Caractéristiques

  • 12-bit High Resolution
    • 12-bit Analog-Digital Convertors with sample rate up to 2 GSa/s
    • Front ends with 70 μVrms noise floor @ 100 MHz bandwidth
    • 2/4 analog channels, up to 700 MHz bandwidth
    • SPO technology
  • Waveform capture rate up to 80,000 wfm/s (normal mode), and 500,000 wfm/s (sequence mode)
  • Supports 256-level intensity grading and color temperature display modes.
  • Up to 50 Mpts record length
  • Digital trigger system
  • Intelligent trigger: Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video (HDTV supported), Qualified, Nth edge, Delay, Setup/Hold time.
  • Serial bus triggering and decoder, supports protocols I²C, SPI, UART, CAN, LIN.
  • Segmented acquisition (Sequence) mode, dividing the maximum record length into multiple segments (up to 80,000), according to trigger conditions set by the user, with a very small dead time between segments to capture the qualifying event.
  • History waveform record (History) function, the maximum recorded waveform length is 80,000 frames.
  • Automatic measurements on 50+ parameters, supports statistics with histogram, track, trend, Gating measurement, and measurements on Math, History and Ref.
  • 4 Math traces (2 Mpts FFT, addition, subtraction, multiplication, division, integration, differential, square root, etc.), supports formula editor.
  • Abundant data analysis functions such as Search, Navigate, Counter, Bode plot and Power Analysis
  • High Speed hardware-based Mask Test function, with Mask Editor tool for creating user-defined masks
  • 16 digital channels (optional)
  • 25 MHz waveform generator (optional)
  • 7" TFT-LCD display with 1024 x 600 resolution; Capacitive touch screen supports multi-touch gestures.
  • Interfaces include: USB Hosts, USB Device (USBTMC), LAN (VXI-11/Telnet/Socket), Pass/Fail, Trigger Out
  • Built-in web server supports remote control over the LAN port using a web browser. Supports SCPI remote control commands. Supports external mouse and keyboard. Supports NTP.

Spécifications

Analog Channels 4
Bandwidth 100 MHz
Vertical resolution 12-bit
Sample rate (Max.) One channel mode: 2 GSa/s
Two channel mode: 1 GSa/s
Four channel mode: 500 MSa/s
Memory depth (Max.) One channel mode: 50 Mpts/ch
Two channel mode: 25 Mpts/ch
Four channel mode: 10Mpts/ch
Waveform capture rate (Max.) Normal mode: 80,000 wfm/s
Sequence mode: 500,000 wfm/s
Trigger type Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video, Qualified, Nth edge, Delay, Setup/Hold time, Serial
Serial trigger and decode (Standard) I²C, SPI, UART, CAN, LIN
Measurement 50+ parameters, statistics, histogram, trend, and track supported
Math 4 traces 2 Mpts FFT, Filter, +, -, x, ÷, ∫dt, d/dt, √, Identity, Negation, Absolute, Sign, ex, 10x, ln, lg, Interpolation, MaxHold, MinHold, ERES, Average. Supports formula editor
Data analysis Search, Navigate, History, Mask Test, Counter, Bode plot, and Power Analysis
Digital channel (optional) 16-channel; maximum sample rate up to 1 GSa/s; record length up to 10 Mpts
USB AWG module (option) One channel, 25 MHz, sample rate of 125 MHz, wave length of 16 kpts, isolated output
I/O 2x USB 2.0 Host, USB 2.0 Device, 10/100 M LAN, Auxiliary output (TRIG OUT, PASS/FAIL), SBUS (Siglent MSO)
Probe (Standard) Passive probe PB470 for each channel
Display 7 TFT-LCD with capacitive touch screen (1024x600)

Inclus

  • 1x Siglent SDS814X Oscilloscope
  • 4x Passive probe (100 MHz) PP510
  • 1x Power cord (EU)
  • 1x USB cable
  • 1x Certificate of calibration
  • 1x Quick start

Téléchargements


Fiche produit

The Siglent SDS814X HD digital storage oscilloscope is based on 2 GSa/s, 12-bit Analog-Digital Converters and front ends with excellent noise... Lire la suite

€ 582,00 (TVA incluse)
Acheter (chez Eleshop)
En cliquant sur « Acheter », vous serez redirigé vers notre boutique partenaire Eleshop. Elektor reçoit une petite commission pour chaque achat effectué via ce lien. Cela ne vous entraîne aucun coût supplémentaire. Les conditions générales de vente d'Eleshop s'appliquent.
