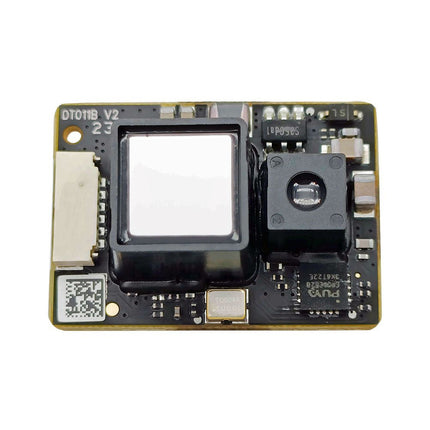

YDLIDAR SDM18 Single-point LiDAR

  • MarqueYDLIDAR

Description

YDLIDAR SDM18 is a high-performance single-point LiDAR. Based on the principle of ToF, it is equipped with related optics, electricity, and algorithm design to achieve high-precision laser distance measurement and outputting high frame rate point cloud data of the scanning environment. It can be used for UAV alt-hold, robot obstacle avoidance and navigation, etc.

Spécifications

  • High Ranging frequency: 50-250 Hz
  • Range Distance: 0.2-18 m
  • FDA Class I eye safety standard
  • Support UART and I²C interfaces
  • Dimensions: 21 x 15 x 7.87 mm
  • Weight: 1.35 g

Applications

  • UAV alt-hold and obstacle avoidance
  • Robot obstacle avoidance
  • Intelligent equipment obstacle avoidance
  • Navigation and obstacle avoidance of home service robots / robot vacuum cleaners

Téléchargements

Fiche produit

YDLIDAR SDM18 is a high-performance single-point LiDAR. Based on the principle of ToF, it is equipped with related optics, electricity,... Lire la suite

2 en stock

€ 29,95 € 19,95 (TVA incluse)
Membres identique

      Détails

      SKU : 20910
      EAN : 020910

      Description

      YDLIDAR SDM18 is a high-performance single-point LiDAR. Based on the principle of ToF, it is equipped with related optics, electricity, and algorithm design to achieve high-precision laser distance measurement and outputting high frame rate point cloud data of the scanning environment. It can be used for UAV alt-hold, robot obstacle avoidance and navigation, etc.

      Spécifications

      • High Ranging frequency: 50-250 Hz
      • Range Distance: 0.2-18 m
      • FDA Class I eye safety standard
      • Support UART and I²C interfaces
      • Dimensions: 21 x 15 x 7.87 mm
      • Weight: 1.35 g

      Applications

      • UAV alt-hold and obstacle avoidance
      • Robot obstacle avoidance
      • Intelligent equipment obstacle avoidance
      • Navigation and obstacle avoidance of home service robots / robot vacuum cleaners

      Téléchargements
